1
Editor's Choice
Makerhawk DSO2512G Lcd Handheld Digital Oscilloscope Kit
MAKERHAWKBrand
DSO2512GModel
1.5H*3.23L*5.39W inchesDimension
9.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $$
FreeShipping
Visit Store » MakerHawk-US ( 4.8 / 5 )
Features
- New upgraded version - dual channel 2.8 inch HD LCD oscilloscope with 500MSa/s real time sampling rate, 120MHz bandwidth, 500Khz signal generator frequency, vertical sensitivity range 10mV/div-100V/div, it uses ARM+FPGA+ADC chip combination for high speed signal acquisition and data processing, making it the perfect choice for various measurement and test fields
- Professional design - with three trigger modes (auto/normal/single), two trigger types (rise/fall) and two trigger levels (manual/auto). It offers 14 measurement options and supports waveform parameter settings such as time base and amplitude. Save/preview waveforms by clicking the "Save" button, up to 1000 waveforms can be retained and unwanted waveforms can be deleted. One-click Auto Auto waveform adapts to the screen for accurate results without adjusting parameters
- Signal generator - The bottom of the oscilloscope can output a variety of waveforms with 2.5V amplitude, such as sine, square, triangle, half, singe, noise, etc. The frequency adjustment range of sine waveform is 0~10MHz, and the frequency range of other waveforms is 0~2MHz with an accuracy of up to 0.1Hz. For novices, it can also be used to assist in learning to use the oscilloscope and save the cost of buying expensive signal generators
- Cursor measurement - Support for manual cursor measurement Support for horizontal and vertical cursor measurement functions, useful for measuring pulsed signals, spikes or other non-periodic signals
- Safety in use - The handheld oscilloscope is intelligent and burn-proof, with a built-in high voltage protection module that can withstand up to 400V AC/DC voltage signals. And the built-in 4000mAh high quality battery can be used continuously for about 6 hours after a full charge
- Wide range of applications - can measure the voltage amplitude, period, signal waveform, etc. of DC signals and AC signals. It can be used for microcontroller debugging, car repair, home appliance repair, DIY debugging, e-sports, power supply debugging, inverter, etc
- After-sales Service - We have a strong after-sales service team, as long as you have any questions about the product, we will solve your problem immediately after receiving your email, please click "MakerHawk-US" and click on how to send us an email "Ask a question" email us, looking forward to your inquiry, we will reply you within 24 hours
2
Editor's Choice
Fnirsi 2C23T PLUS Digital Oscilloscope Multimeter Dds Generator 3 In 1
FNIRSIBrand
2C23T PlusModel
1.34H*6.58L*3.35W inchesDimension
0.64 lbWeight
Ranked #18 in Best Lab Oscilloscopes Of 2024
9.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- Oscilloscope Mode - 2 channel handheld oscilloscope, 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 200 mv/div-10 v/div , support waveform image storage and export
- Multimeter Mode -4-digit 10000 Counts. AC Voltage - 0-750 V, DC Voltage - 0-999.9 V, DC/AC Current - 0-9.999 A, Resistance - 0-99.99 M, Capacitance - 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists
- Signal Generator - The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC
- Save function - one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
- Excellent Design - The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging
3
Editor's Choice
Rigol DS1054Z Digital Oscilloscope 50Mhz Bandwidth,4 Channels,1Gsa/S Sampling Rate,24Mpts Memory Depth
RIGOLBrand
DS1054ZModel
5.0H*13.0L*7.0W inchesDimension
6.6 lbWeight
Ranked #5 in Best Lab Oscilloscopes Of 2024
9.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $$$
FreeShipping
Visit Store » RIGOL Official Store ( 4.64 / 5 )
Features
- Analog channel bandwidth - 50 MHz
- 4 analog channels
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range - 1 mV/div to 10 V/div
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display
4

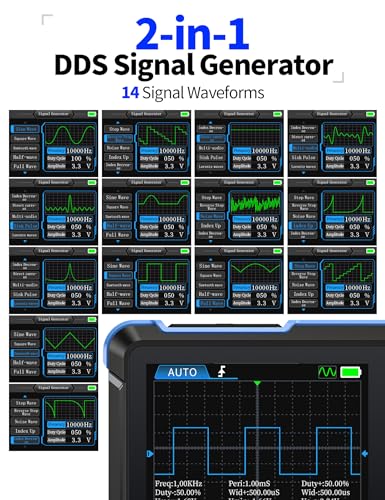

Fnirsi DSO153 PLUS 2 In 1 Handheld Oscilloscope/Dds Signal Generator, Digital Portable Automotive Oscilloscope
FNIRSIBrand
DSO153 PlusModel
9.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
Save 7% + FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- Upgraded Version - Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5 MS/s high sampling rate, 500 ns-20 S time base range, and can measure voltages up to 400 V
- DDS Signal Generator - The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10 KHz
- Easy Measurement - The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging
- Professional Design - The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals
- Rechargeable lithium battery - The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours
5
Fnirsi 1014D Oscilloscope 2 In 1 Digital Oscilloscope Dds Signal Generator
FNIRSIBrand
1014DModel
5.51H*9.84L*2.76W inchesDimension
3.46 lbWeight
Ranked #14 in Best Lab Oscilloscopes Of 2024
9.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
Save 23% + FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope can be triggered by single/normal/automatic, it can be used freely for both periodic analog signals and aperiodic digital signals
- DDS Function Signal Generator - Chopping output 2.5 VPP, signal frequency steps are 1 HZ, support 14 kinds of function signals and a customizable chopping signal, which can store up to 1000 customized chopping signals
- Easily Measuring - Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion
- Easy to Observe - Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen
- Lissajous Graphic Display & FFT Viewing - Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal
6
Fnirsi 1013D PLUS Oscilloscope - Portable Handheld Tablet Oscilloscope
FNIRSIBrand
1013D PLUSModel
Ranked #8 in Best Lab Oscilloscopes Of 2024
8.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
Save 10% + FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- Professional Designed - FNIRSI oscilloscope with 1 GSA/S sampling rate and 100 MHZ * 2 bandwidth. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used for both periodic analog signals and aperiodic digital signals
- Highly Performance - 7 inch, 800 * 480 resolution, bright colors, high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module, can tolerate a continuous voltage of up to 400 V. 6000 mAh lithium battery, sustainable use of 4 hours
- Waveform Image Manager - 1 GB storage space can store up to 1000 screenshots 1000 sets of waveform data. Waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning and waveform zooming in, zooming out, moving, etc
- Easily Measuring - Capacitive screen touch & gesture operation, cursor measurement, when manually reading amplitude-frequency parameters, and you can directly get the peak-to-peak value and frequency without reading the background scale unit and quantity
- Lissajous Graphic Display & FFT Viewing - Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal
7

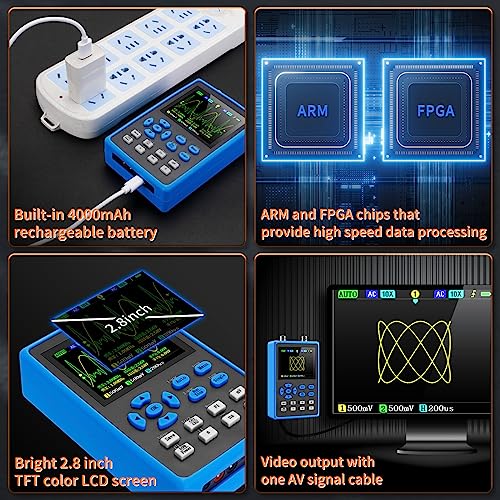

Fnirsi DSO152 Oscilloscope - 2.8 Inch Tft Handheld Digital Oscilloscope Kit Portable Automotive Oscilloscope
FNIRSIBrand
DSO152Model
0.66 lbWeight
Ranked #4 in Best Lab Oscilloscopes Of 2024
8.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
Save 11% + FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- Faster sampling speed - FNIRSI DSO152 mini oscilloscope has a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth. The 10 x probe can measure up to 800 VPP, which is equivalent to 280 V AC. Voltages up to 400 V can be measured
- Professional Designed - Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. 2.8 inch HD LCD display screen, a resolution of 320*240, clear and easy to observe
- Portable Mini Oscilloscope - Pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can be used directly to avoid assembling welding process problems. Applicable to the maintenance industry and R&D education industry
- Easy Measuring - Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms
- Longer Battery Life - Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, which can be used continuously for about 4 hours after being fully charged. Type-C interface supports data transmission and charging, firmware upgrade
8
Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts
WESTOBIGBrand
WB-2C53PModel
Ranked #2 in Best Lab Oscilloscopes Of 2024
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts cover](https://m.media-amazon.com/images/I/51SRP6g8ObL._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #1](https://m.media-amazon.com/images/I/51NWAoxDiDL._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #2](https://m.media-amazon.com/images/I/41hCn3UuK8L._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #3](https://m.media-amazon.com/images/I/41nSDN8IYLL._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #4](https://m.media-amazon.com/images/I/41hQ33-NCVL._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #5](https://m.media-amazon.com/images/I/41ChZ54o5TL._SL500_.jpg)
![Westobig WB-2C53P [2C53P Plus Upgraded With Carrying Case]3In1 Oscilloscope/Multimeter/Dds Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50Mhz Bandwidth 250Ms/S Counts thumb #6](https://m.media-amazon.com/images/I/41p14M7qwhL._SL500_.jpg)
8.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
FreeShipping
Visit Store » WESTO GIANT ( 4.96 / 5 )
Features
- 3in1 - Upgraded from 2C23T, FNIRSI 2C53P has combined the functions of 2 channels oscilloscope, digital multimeter and signal generator, but also highly improved its performances in all aspects.
- Oscilloscope - FPGA+MCU+ADC hardware architecture, protects it from overheat and ensures strong capture function. Sampling rate 250MS/s, bandwidth 50Mhz and a built-in high-voltage protection module. Maximum voltage 400V; supports waveform screenshots.
- Multimeter Mode - 4 and a half digit 19999 Counts. It could measure both AC and DC voltage, measure the current, capacitance, resistance, diode, continuity, and temperature, etc.
- DDS Signal Generator Mode - Output 12 kinds of function signals such as sine, square, triangle, full, half, noise, and DC etc. The maximum output 10MHz. Adjustable frequency, amplitude, and duty cycle.
- Accurate Analysis - Excellent analyzation function. It has afterglow, FFT spectrum analysis, cursor measurement, LISSAJOUS graphics display, etc., displaying and analyzing the signal frequency ingredients, and helping you obtain the accuracy of analysis
- Large Capacity Battery - It is 4.3-inch IPS touchscreen tablet with 480*272 ultra high resolution, easy for users to operate. The 4000mAh built-in battery allows you to use it for 4 hours atfer fully charged
9

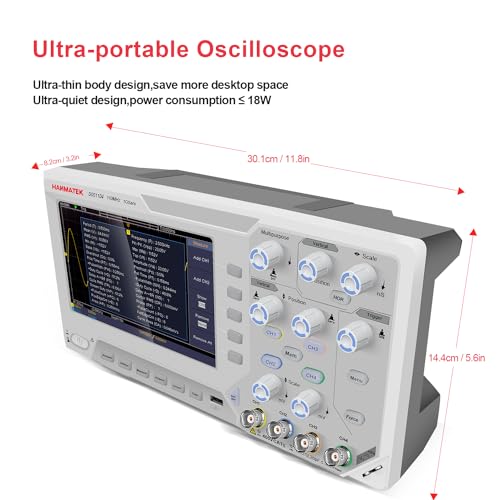

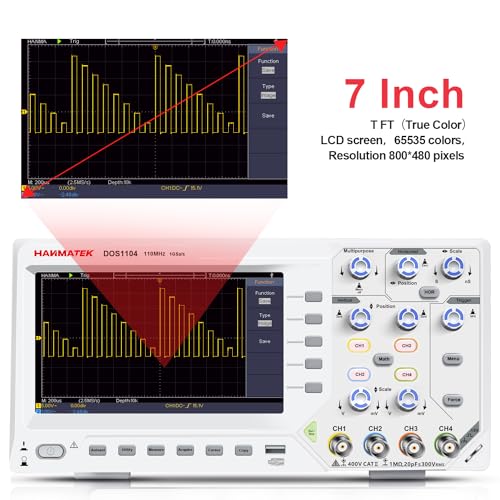

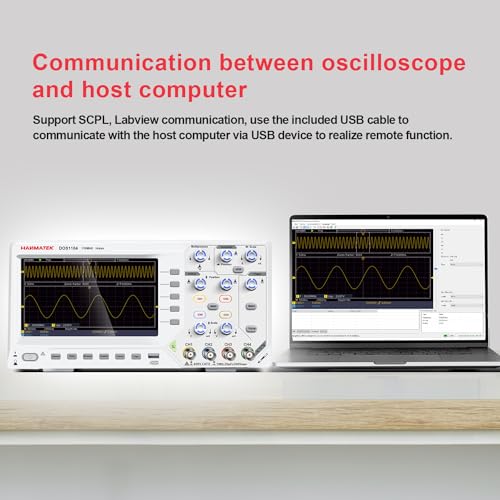

Hanmatek DOS1104 Digital Oscilloscope
HANMATEKBrand
DOS1104Model
8.5We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$$
FreeShipping
Visit Store » HANMATEK US-Official store ( 4.8 / 5 )
Features
- 1 - 110 MHz bandwidth, 1 GS/s real-time sampling rate, 4 channels, 2 ns / Div ~ 1000s / Div time base range; 5 mV/div5 V/div vertical scale, storage depth (each acquisition The recording length of the waveform) is not less than 20K sampling points; it can store not less than 16 groups of waveforms, and has U disk storage function, USB device and host interface;
- 2 - 7-inch TFT LCD screen (true color), 65535 colors, resolution 800480 pixels; supports cursor measurement, the cursor mode is no less than voltage difference (V), time difference (T), time difference and voltage difference ( V) Four modes of automatic cursor;
- 3 - It has automatic range function and supports horizontal, vertical, single waveform/multiple waveform tracking; there are four probe attenuation multiples - 1X, 10X, 100X, and 1000X;
- 4 - Built-in 6-digit hardware frequency meter, capable of measuring 2 Hz ~ 20 MHz; with current measurement function, measurement range - 100.0 mA/V ~ 1 kA/V; with U disk storage function; USB device and host interface; host software download Address - bit.ly/3W4dCxA;
- 5 - It has 30 automatic measurement functions and can customize the measurement menu; it has a waveform capture function, supports LABVIEW communication, supports secondary development, and complies with SCPI specifications; powered by DC.
10
Makerhawk DSO3D12 Lcd Handheld Digital Oscilloscope Kit
MAKERHAWKBrand
DSO3D12Model
1.26H*5.71L*3.39W inchesDimension
8.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
FreeShipping
Visit Store » MakerHawk-US ( 4.8 / 5 )
Features
- Professional design - 3 IN 1 Multimeter oscilloscope 2-channel input, bandwidth up to 120MHZ. built-in DDS function signal generator. Real-time sampling rate 250MSa/s, minimum range 10mV/div, cursor measurement function, 14 kinds of automatic measurement functions, XY function, one-touch automatic setting function, easy to detect and debug
- Signal Generator - Built-in waveform signal generator, it can output sine wave, square wave, triangle wave and so on. The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the square wave duty cycle is adjustable from 1% to 99%
- High-precision Multimeter - Built-in true RMS multimeter, which supports fast software calibration. When measuring low voltage/resistance/continuity, oscilloscope and multimeter can be used simultaneously
- High performance - 3 IN 1 Oscilloscope is compact and easy to carry, 3.2 inch LCD backlight display with vivid colors and high contrast ratio. Ultra-thin, easy to carry. Built-in high-voltage protection module, can withstand continuous voltage up to 400V. 2500mAh high-performance lithium battery, fully charged for 4 hours of continuous use
- 3 trigger modes and one-touch auto - Oscilloscope kit is configured with 3 trigger modes, auto/normal/single trigger. Support time base, amplitude, trigger slope and other waveform parameters settings, support waveform one-touch AUTO automatic screen adaptation, no need to adjust parameters, convenient and accurate measurement
- Wide range of uses - Multimeter oscilloscope in the field troubleshooting performance, digital oscilloscope can be used for automotive diagnostic work, detection of fuel injectors and ignition coils, etc.; find intermittent DC voltage drop or problems with industrial equipment and sensors; school education laboratory courses; other ranges include heavy electrical, low-voltage prototyping, precision maintenance, etc
11
Echouswin EN-2C Oscilloscope - 2 Channel Handheld Digital Oscilloscope Kit
ECHOUSWINBrand
EN-2CModel
2.8H*4.7L*0.8W inchesDimension
8.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
FreeShipping
Visit Store » Echouswin ( 4.63 / 5 )
Features
- Faster sampling speed - Echouswin EN-2C Oscilloscope mini oscilloscope has a real-time sampling rate of 50MS/s and a 10MHz bandwidth. Voltages up to 400V can be measured.
- Professional Designed - Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. 3.2-inch high-definition LCD display screen, a resolution of 320*240, support interface to update firmware directly.
- Portable Mini Oscilloscope - Pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can be used directly to avoid assembling welding process problems and greatly saves the assembly time. Applicable to the maintenance industry and R&D education industry. The highly practical oscilloscope can meet your daily testing needs.
- Easy Measuring - Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms, improve work efficiency.
- Longer Battery Life - Automotive oscilloscope has a built-in 2500mAh high-quality lithium battery, which can be used continuously for about 5-6 hours after being fully charged. At the same time, it is equipped with a type-c charging cable, which can also be used while charging, which is very convenient.
12

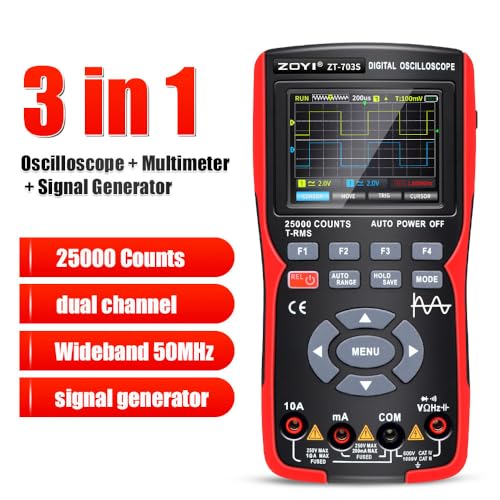

Znzhnsi 703S-HIGH 3-In-1 Handheld Oscilloscope Multimeter Dds Generator, Dual Channel 50Mhz Bandwidth, 280Msa/S High Sampling Professional Oscilloscope, 25000 Count Digital Multimeter
ZNZHNSIBrand
703S-HIGHModel
8.2We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
FreeShipping
Visit Store » Smart Giants ( 4.33 / 5 )
Features
- 3-in-1 - The ZNZHNSI 703s is a dual-channel handheld device with both oscilloscope and multimeter and signal generator functions, featuring a 3.5 inch IPS display, 50 Mhz bandwidth, 280 MSa/s fast real-time sampling rate, 400 V input capability, 25,000 counts, 128Kb recording depth, and tri-mode switching between oscilloscope and multimeter and signal generator. Easy to use and improve work efficiency.
- Oscilloscope Mode - 2-channel handheld oscilloscope with 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, 400V maximum measurement voltage, automatic measurement function, auto/normal/single trigger function, vertical sensitivity 20mv/div-10v/div, support waveform image storage and export.
- Multimeter Mode - 25000 counts; AC - 0-750V; DC - 0-1000.0V; DC/AC - 0-10.000A; Resistance - 0-250.0M; Capacitance - Resistance - 0-250.0M; Capacitance - 0-99.99mF; Frequency - 0-999.9kHZ; Diode, continuity measurement. Multi-functional measuring instrument, ideal for professionals, factories, schools, hobbyists and families.
- Outstanding design - Double injection molded ABS and TPE reinforced structure, excellent impact resistance and durability; 320*240 resolution; large font design, easy to read data; adjustable brightness, suitable for a variety of measurements in complex environments. Equipped with signal generator function, can output six kinds of waveforms - string, square wave, triangle wave, full wave, half wave
- Waveform Storage and Viewing - The oscilloscope automatically stores the current measurement waveform data in the form of run number and image in the memory; connect the oscilloscope to the computer by connecting the TYPE-C cable, click on the USB flash drive and open the image folder to access or download the waveform to a safer location in the computer for easy backup and analysis. Auto Power Off - You can choose the auto power off time. Depends on the usage frequency.
13

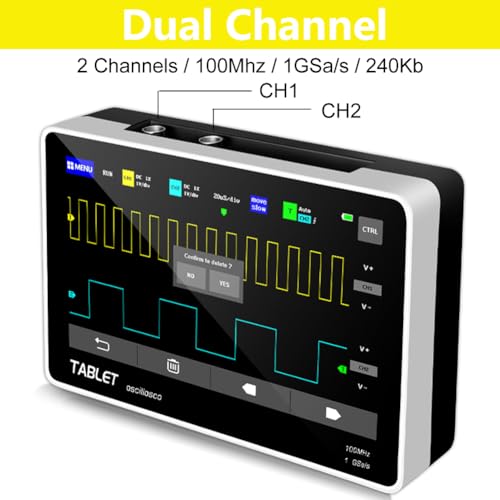

Yeapook ADS-1014D Ads1014D 2 In 1 Digital Oscilloscope Dds Signal Generator
YEAPOOKBrand
ADS-1014DModel
3.1H*12.2L*9.7W inchesDimension
8.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$
FreeShipping
Visit Store » Eple ( 4.73 / 5 )
Features
- 2 channels, 100 MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample memory depth.
- Built in DDS Function Signal Generator,14 standard signals (@ 2.5vpp), including sine wave, square wave, triangle wave, ect. Only the Frequency is adjustable
- It intercept whole or part of the complex signals from the oscilloscope as the output signal of the signal generator. It can store up to 1000 customized signals.
- Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.
- & - Lissajous figure can be used to compare and judge the amplitude, frequency and phase of two groups of signals. the FFT function can estimate the harmonic component of signals
14
Rigol Ds1202Z-E Digital Oscilloscope 200Mhz Bandwidth,2 Channels,1Gsa/S Sampling Rate,24Mpts Memory Depth
RIGOLBrand
RIGOL DS1202Z-EModel
4.82H*12.33L*6.33W inchesDimension
6.37 lbWeight
Ranked #20 in Best Lab Oscilloscopes Of 2024
8.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$$
FreeShipping
Visit Store » RIGOL Official Store ( 4.64 / 5 )
Features
- Analog channel bandwidth - 200 MHz
- 2 analog channels
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range - 1 mV/div to 10 V/div
- Various interfaces - USB Host&Device, LAN (LXI), AUX
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display
15

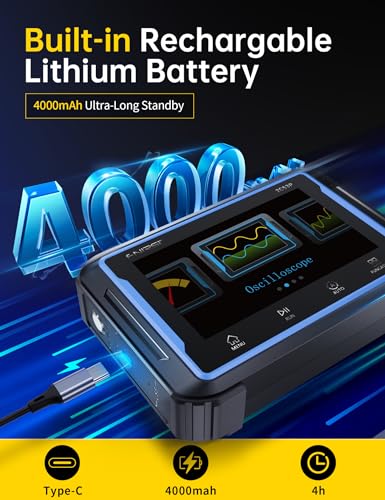

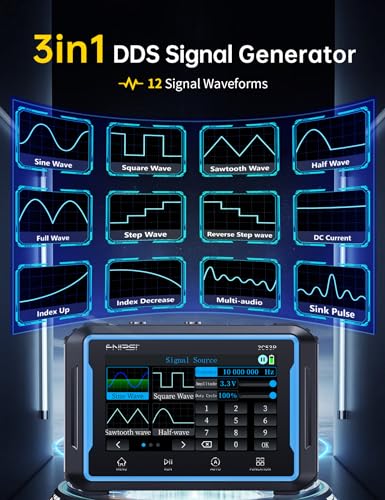

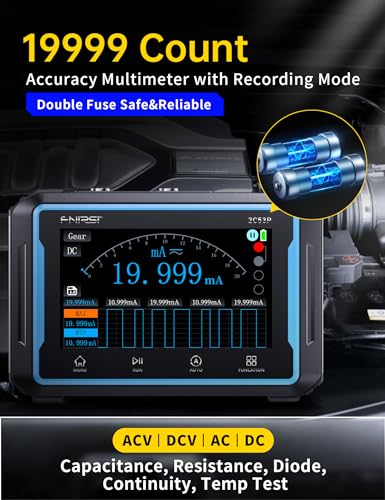

Fnirsi FNIRSI-2C53P Handheld Tablet Oscilloscope Multimeter Dds Signal Generator 3 In 1
FNIRSIBrand
FNIRSI-2C53PModel
7.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$
Save 5% + FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- 2 channel oscilloscope multimeter - Upgraded from 2C23T, FNIRSI 2C53P handheld oscilloscope has 250 MS/s sampling rate, 50 Mhz bandwidth. Multimeter 19999 counts, 5 measuring values, max and min display. 4.3-inch IPS touch screen, 480*272 high resolution
- DDS Signal generator - It can output 12 waveforms, the maximum waveform output frequency can reach 10 MHz. FPGA + MCU + ADC hardware structure can ensure a strong waveform capture function. Support waveform preservation, view and export analysis
- Efficiency improvement - Automotive oscilloscope has efficient one-key AUTO, quickly measure, simplify operations. Support automatic/normal/single trigger.Tablet Oscilloscope suitable for periodic analog signals and non -periodic digital signals
- Comprehensive analysis - X-Y mode can be used to compare the phase, amplitude and frequency of two sets of signals. FFT spectrum analysis can estimate the harmonic content and better handle complex signals
- Long-lasting battery life - The digital oscilloscope has a built-in 4000 mAh lithium battery with a battery life of about 4 hours, and supports Type-C interface charging to ensure uninterrupted work
16

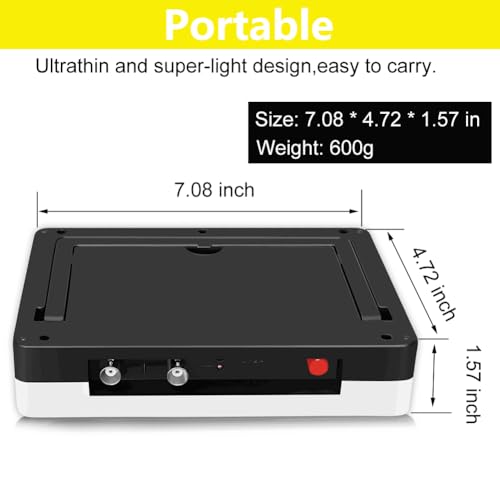

Yeapook ADS1013D EU Handheld Digital Tablet Oscilloscope Portable Storage Oscilloscope Kit
YEAPOOKBrand
ADS1013D EUModel
4.72H*7.09L*1.57W inchesDimension
1.76 lbWeight
7.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$
FreeShipping
Visit Store » Eple ( 4.73 / 5 )
Features
- 2 channels, 100 MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample memory depth.
- 7'' color TFT- LCD touch screen with 800 * 480 resolution.
- Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.
- Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V.
- ASD1013D is widely applicable in the academic experiment, electronic product design,debugging and maintenance, electronic engineering education, etc.
17
Rigol DHO804 70Mhz Frequency Band + 12-Bit Vertical Resolution + Maximum 1.25 Gsa/S Sample Rate + 1000,000 Wfms/S Waveform Capture Rate + 4 Analog Channels
RIGOLBrand
DHO804Model
6.37H*10.45L*3.05W inchesDimension
3.92 lbWeight
Ranked #9 in Best Lab Oscilloscopes Of 2024
7.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$$
Save 15% + FreeShipping
Visit Store » Tequipment ( 4.81 / 5 )
Features
- Ultra low background noise makes the signal more pure, no miss a small signal. Provides 12-bit hardware high resolution for all series. Up to 70 MHz analog bandwidth, up to 4 analog channels, dual channel models come standard with external trigger ports. Up to 1.25 GSa/s real-time sampling rates Storage depth up to 25 Mpts Vertical sensitivity range of 500 V/div to 10 V/div Ultra Aqua mode provides up to 1 million wfms/s waveform capture rate
- Supports gray scale digital real-time brightness function on the 256 floor. Supports waveform search and navigation function to quickly identify signal abnormalities. It has a 7 inch 1024 * 600 high definition touch screen. The new Flex knob provides an easier to use interactive experience. USB Device & Host, LAN, and HDMI ports come standard with all models. New design provides convenient maneuverability. Supports online version upgrade
- The main body of RIGOL equipment provides a 3 year standard warranty. Product Weight - 3.9 lbs (1.78 kg). Dimensions - 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)
- Accessories - Power cable, USB cable, ground wire, probe x 4
18
Fnirsi 2C23T 3 In 1 Handheld Oscilloscope Multimeter Dds Generator
FNIRSIBrand
2C23TModel
1.4H*6.6L*3.4W inchesDimension
0.65 lbWeight
Ranked #13 in Best Lab Oscilloscopes Of 2024
7.5We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
FreeShipping
Visit Store » FINRSI Technology ( 4.88 / 5 )
Features
- 2 channel handheld oscilloscope - 10 MHz bandwidth, real-time sampling rate 50 MSa/s, record depth 32 kb, max measurement voltage 400 V, automatic measurement function, 200 mv/div-10 v/div vertical sensitivity, support waveform image storage and export
- Multimeter Mode -4-digit 10000 Counts. AC Voltage - 0-750 V, DC Voltage - 0-999.9 V, DC/AC Current - 0-9.999 A, Resistance - 0-99.99 M, Capacitance - 0-99.99 mF, Diode, Continuity Measurement. An multi-function meter for professionals, schools, hobbyists
- Signal Generator - The maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC
- Excellent Design - The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8'' HD LCD display, built-in 3000mAh rechargeable battery, standby time up to 6 H, Type-C interface supports 5 V 1 A charging
- Save function - one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
19
Mivofun MIVOFUN041 138Pro Mini Handheld Digital Oscilloscope Kit
MIVOFUNBrand
Mivofun041Model
7.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
Save 6% + FreeShipping
Visit Store » Mecomking ( 4.87 / 5 )
Features
- Faster sampling speed - Mivofun mini oscilloscope has a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth. The 10x probe can measure up to 800VPP, which is equivalent to 280V AC. Voltages up to 400V can be measured.
- Cost Effective & MORE ACCURACY - Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. Built -in PWM square wave output. 2.4-inch high-definition LCD display screen, a resolution of 320*240, Type-C interface supports data transmission and charging.support interface to update firmware directly.
- Portable Small Practical Oscilloscope - Mivofun pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can be used directly to avoid assembling welding process problems and greatly saves the assembly time. Applicable to the workplace such as family, school, and factory.
- Easy Measuring - Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms, improve work efficiency.
- Packing list - Package includes an Assembled finished Machine, an universal BNC interface data cable, a 10X probe.
20
Yeapook YP101A 3 In 1 Handheld Digital Oscilloscope Multimeter Portable Oscilloscopes
YEAPOOKBrand
YP101AModel
7.1H*3.29L*1.3W inchesDimension
7.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
FreeShipping
Visit Store » Eple ( 4.73 / 5 )
Features
- 3 IN 1 DESIGNED - A 12MHz Bandwidth 50MSa/s Sampling Rate oscilloscope combined with a 6000 counts digital multimeter and a signal generator.Switch modes freely to improve work efficiency.
- EASY to USE - The oscilloscope multimeter equipped with high efficiency one-key switching mode, automatic measurement, easy to use and suitable for beginners.
- ONE-KEY SAVE - Simply press the "SAVE" key to save the data, it can storage 100 sets of multimeter data and 10 waveforms,convenient for data secondary analysis.
- LONG STANDBY TIME - Build in a rechargeable 1500mAh lithium battery and support Type-C charging, it has an automatic sleep function after 15 minutes of no operation, and can be used continuously for more than 8 hours.
- WIDELY USED - The oscilloscope is a cost-effective handheld oscilloscope multimeter with generator, applicable for many fields, such as electronic DIY, home appliance repair, car maintenance,debugging and maintenance, electronic engineering education, etc..
- PORTABLE - 180*83*32mm, 250g, easy to carry and grasp with one hand.
