1
Editor's Choice
Cnctopbaos 4V 3 Axis Grbl 1.1F Usb Port Cnc Engraving Machine Control Board Cnc Router Engraver Milling Machine Controller Board
CNCTOPBAOSBrand
4VModel
0.15 lbWeight
9.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
Save 5% + FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features
- Model -Upgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board; Input voltage - 24VDC
- Support software -GRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System - Windows XP/7/8/10
- Support Motor -Support XYZ three-axis control, spindle.Support stepper motor - 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle - Support 24VDC Spindle PWM speed (0%-100%),also support 3-pin PWM/TTL signal control module

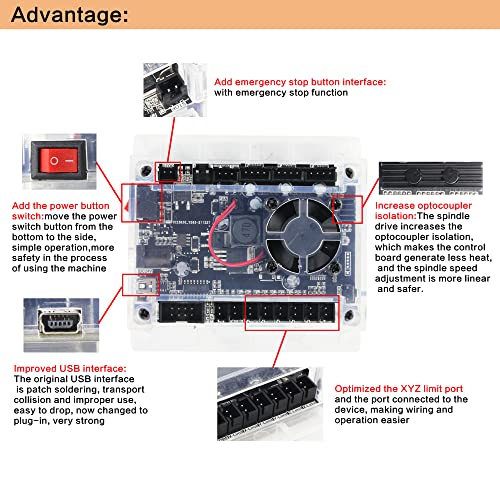

- New functions - Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch.
- Applications - The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.
2
Editor's Choice
F-Yi Grbl Controller Board 3 Axis Controller Panel For Diy Cnc 3018 1610 2418
F-YIBrand
9.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
FreeShipping
Visit Store » F-Yi ( 4.88 / 5 )
Features

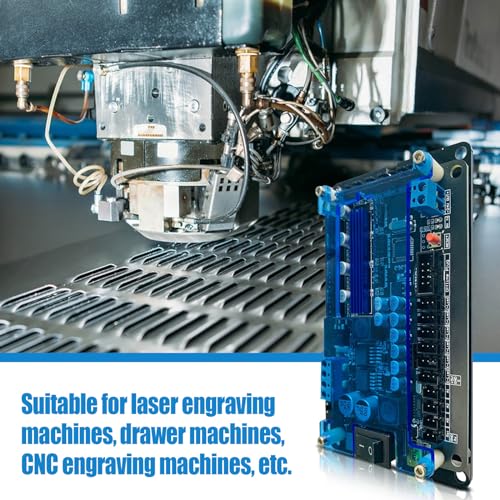

- Support GRBL and benbox firmware.Support CNC 3-axis laser engraving machine.
- Input voltage - DC7V-36V. Power supplyRecommended use 12V-24V , Recommended current value5A-10A. (the power supply voltage should be the same as the laser voltage.)
- USB cable - Length 20cm.Firmware - GRBL 08, 09, 1.1and so on.
- It suitable for 3018 Pro,2418 and so on.Please set the stroke in the command.For example 3018, please set the stroke in the command, 30cm length and 18cm width;2418, please set the XY stroke in the command, length 24cm, width 18cm.

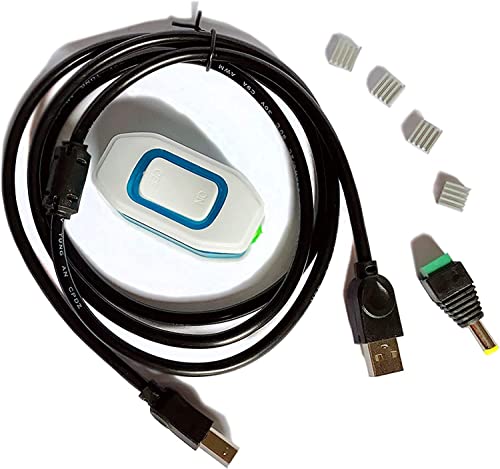

- Package List - 1pcs GRBL Control Board +1pcs USB cable + 3pcs Heat sinks.
3
Editor's Choice
Sainsmart CECOMINOD047429 5 Axis Breakout Board For Stepper Motor Driver Cnc Mill
SAINSMARTBrand
CECOMINOD047429Model
9.4We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
FreeShipping
Visit Store » SainSmart Official ( 4.82 / 5 )
Features
- The maximum matching 5-axis stepper motor driver
- The two-stage signal processing, signal transmission smooth, powerful anti-jamming
- Relay output control interface, can be accessed by the spindle motor or the air pump, water pump, etc
- Five-axis job LED display, visual display products, working condition
4
Doesbot 3AXIS-RED Grbl 1.1 Cnc 3-Axis Control Board Support 48V 500W Dc Spindle And 12V 60W Laser
DOESBOTBrand
3AXIS-REDModel
9.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
FreeShipping
Visit Store » DOESBOT Store ( 4.95 / 5 )
Features

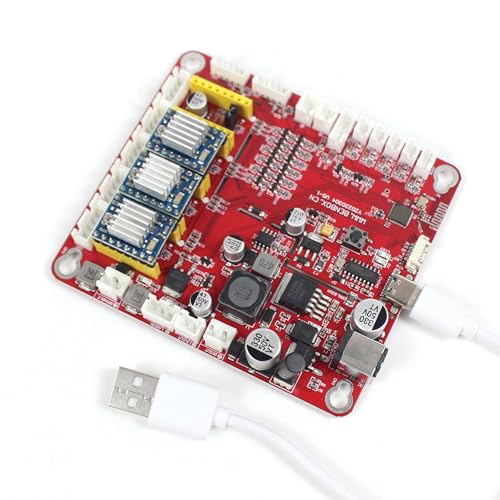

- New design by Doesbot in 2023
- Input voltage (board power supply) - 12V to 24V, Toggle switch control
- Support 48V 500W DC spindle motor
- Support 12V, 5V with TTL and without TTL laser.Maximum 12v 60w
- Adjustable driver subdivision
- Support the xyz limit switch, probe interface

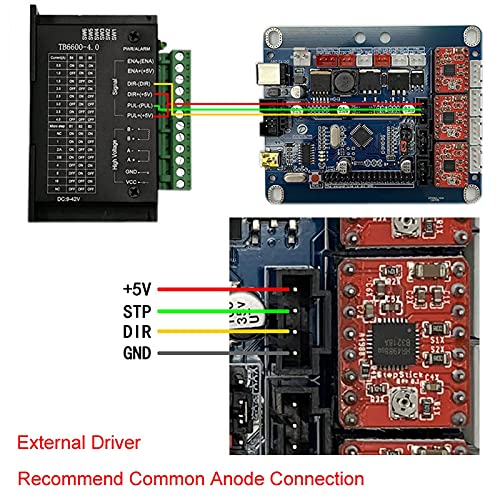

- Support Externally connected high-power driver

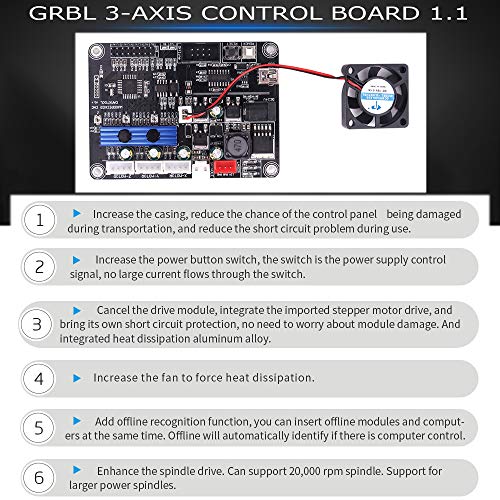

- Nano 3-Axis Control Board is a Arduino Nano based 3-Axises Motion control system
- This controller has burned the grbl1.1 firmware
5

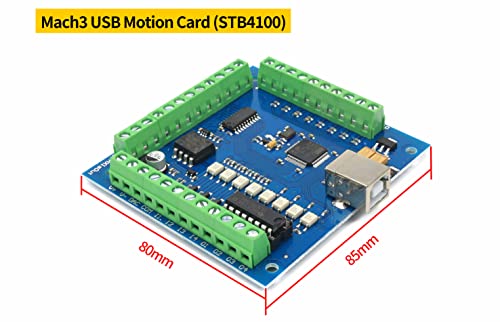

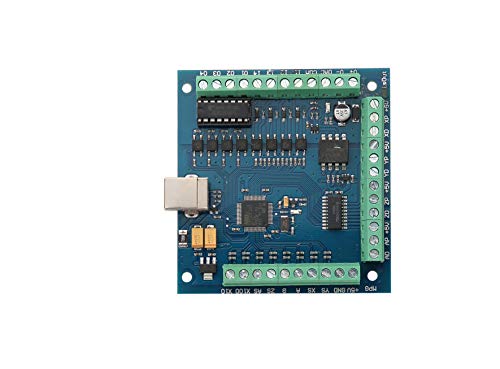

Rattmmotor STB4100 B2.1 Mach3 Usb Cnc Controller Board 4 Axis Cnc Motion Control Card Usb Interface Breakout Board 100Khz
RATTMMOTORBrand
STB4100 B2.1Model
9.2We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Excellent
Price: $
FreeShipping
Visit Store » Kuku Tech ( 4.79 / 5 )
Features
- Model Name - Mach3 USB Motion Card; 4-axis linkage, Maximum step-pulse frequency - 100KHz, support connect four stepper motor drives or servo drives.
- This USB motion card does not need install any USB driver, Windows2000/XP/Windows7,can directly identify (Notice - Doesn't support Win8/win10/macOS system !!!) .
- Signal Output - 0-10V, it can control the spindle motor speed through using mach3 software.
- If you are not familiar with the product and software features, make sure the machine's power switch on hand, you can quickly turn off the power.
- Recommends that users install the emergency stop button and make sure the button is functioning properly.
6
Sainsmart Genmitsu Grbl Controller Board For Cnc Router Machine 3018-Prover/ 3018-Prover Mach3/ 3018-Mx3
SAINSMARTBrand
9.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
FreeShipping
Visit Store » SainSmart Official ( 4.82 / 5 )
Features

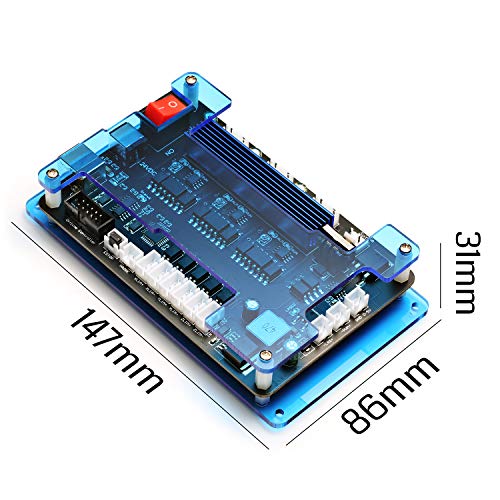

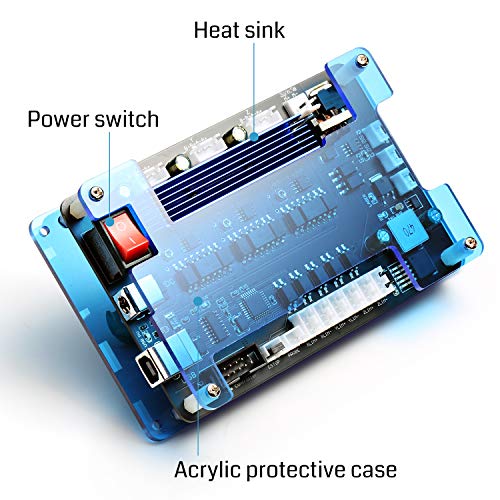

- This controller board is compatible with Genmitsu CNC 3018-PROVer. If you have already had the Genmitsu CNC Router 3018-MX3/ 3018-PROVer Mach3, this controller board can help you turn Mach3 control to GRBL control.
- Applicable Software - Grblcontrol (Candle), LaserGRBL, and other software that supports GRBL firmware, GRBL firmware version V1.1f.

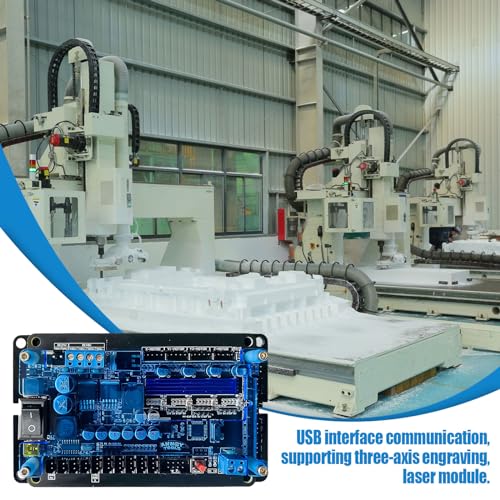

- USB interface communication, support 3-axis engraving, and laser module.
- Input interface - X Y Z limit (HOME) interface, Z-axis tool return to zero, emergency stop switch interface, GRBL offline controller interface.
- All control signals are isolated by optocoupler and have strong Anti-interference ability
7
Sainsmart 816550022382 Genmitsu Cnc Router Machine Controller Board
SAINSMARTBrand
816550022382Model
6.7 lbWeight
9.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
FreeShipping
Visit Store » SainSmart Official ( 4.82 / 5 )
Features
- This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module.
- Software - GRBL controller, UniversalGcodeSender.
- Stepper motor drive - DRV8825; Spindle power - 150W; Input voltage - 24V (12-24V).
- Support XYZ three-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers - please connect the white interface " + s-").
- Support stepper motor - 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).
8
Yidofeng US-GRBL+MK 3 Axis 1.1F Grbl Engraving Machine Control Board Usb Port Cnc Router Controller Board
YIDOFENGBrand
US-GRBL+MKModel
8.9We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
FreeShipping
Visit Store » Kaka-US ( 4.75 / 5 )
Features
- PACKAGE INCLUDE -GRBL 1.1F 3 Axis Control Board V3.4+Offline Controller,Input voltage - 12-24VDC (Recommend 24VDC)
- ADAPTED MOTOR - XYZ three-axis control, spindle motot;stepper motor - 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);spindle motor - 24VDC Spindle PWM speed (0%-100%),and 3-pin PWM/TTL signal control module
- SUPPORT SOFTWAR -Support GRBL Contol/Candle(3 axis);Laser Grbl;Support System - Windows XP/7/8/10;Support Laser - 12V 5Amax
- NEW FUNCTIONS - Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch.
- APPLICATIONS - The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.Offline Control support SD card and tf card at the same time, standard capacity 1G, (notebooks generally have SD card interface, copy files are very convenient)
- AFTER SALES SERVICE - If you get stuck, Contact us with any questions that arise. Our customer service team is always ready to assist with any questions you may have.
9
Cnctopbaos NVUM 6 Axis 125Khz Nvcm Usb Mach3 Stepper Motor Motion Control Card Breakout Board Usb Interface Cnc Controller Board 12-32Vdc
CNCTOPBAOSBrand
nvumModel
8.7We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
Save 5% + FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features
- Support software - This NVCM card support Mach3 software, through USB port to communicate with computer.
- DC power supply input - main device is 24V-32V DC power supply input,current should higher than 1A;
- Max 6 Axis Control - Can support 6 axis stepper systems maxisim,125KHz pulse output for every axis
- PWM output - 1 port 0-10V spindle speed analog output interface(can change to PWM output);
- Multifunction - Power supply interface, USB connection interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on.
10
Mysweety Grbl 1.1F Cnc Controller 3-Axis Cnc Router Machine Control Board For Cnc 3018 Pro 3018 Max 3018Pro-M Milling Machine
MYSWEETYBrand
8.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
FreeShipping
Visit Store » MySweety ( 4.79 / 5 )
Features
- Model - Upgraded 3 Axis GRBL 1.1f USB Port GRBL Control Board. Input voltage - 24VDC
- Support Software - GRBL Contol, Candle(3 axis), UGS(Universal Gcode Sender). Support System - Windows XP/7/8/10, Linux
- Applications - The control board can be used with the 1310,1610-PRO, 3018, 3018 PRO and 3018 MAX cnc engraving machine
- Stepper Motor Drive - A4988. Spindle power - 150W. Input voltage - 24V (12-24V). Maximum current of 2A or less is recommended within 1.5A and additional heat (Any stepper motor Nema17, Nema23)
- Support XYZ 3-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers - please connect the white interface " + s-")
11

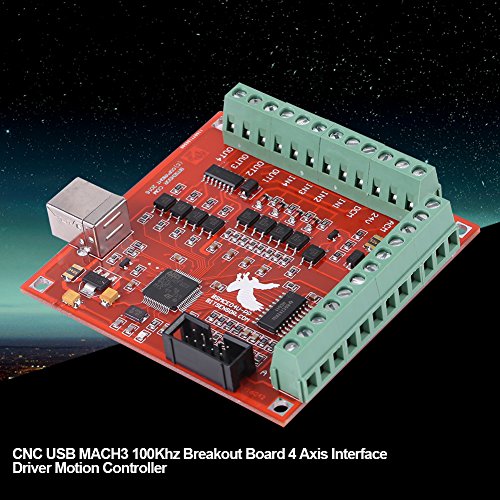

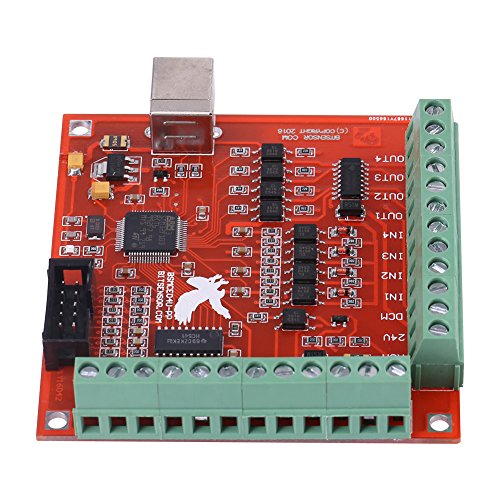

Cnctopbaos D-FDK-R 4 Axis Usb Mach3 Motion Control Card,Red 4-Axis Linkage Mach3 Cnc Controller Board,Stepper Motor Driver Control Card 100Khz 4 Inputs Breakout Board
CNCTOPBAOSBrand
D-FDK-RModel
8.4We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features

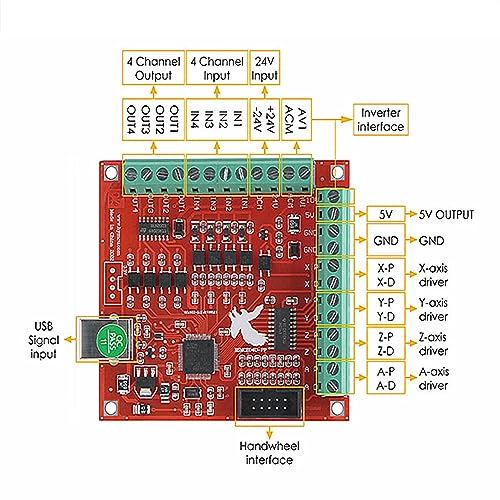

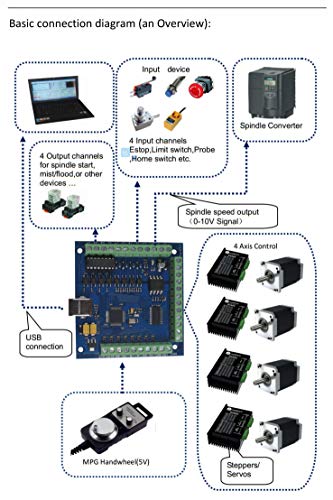

- 4 Axis USB Mach3 Control Board - USB interface is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface.As long as Mach3 can run,the control card can be used; Support computer system - Windows XP/7/8.
- 4 Axis Linkage - Support for 4 Axis linkage, you can connect four stepper motor drives or servo drives; Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;One status LED, indicate connection status on the board.
- Output Signal Ports - Have 0-10V signal output,you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;Support for connecting electronic handwheel;Handwheel interface - 2*5P row needle.
- Input Signal Ports - 4 general-purpose inputs, you can connect the limit switch, estop switch, probe , back to zero and other device; Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
- Applications - CNC Router,Milling Machine,Engraving Machine,Carving Machines,Cutting industry,Medical equipment,industrial equipment and automation devices etc.
12
Hsokew 3103033 3 Axis Grbl V1.1F 32-Bit Controller, Dual Y-Axis Usb Drive Board For Stepper Motor Drive Control-Board Stepper Motor Support Offline For Woodworking Engraving, Cnc Router
HSOKEWBrand
3103033Model
8.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
Visit Store » mescream ( 4.53 / 5 )
Features

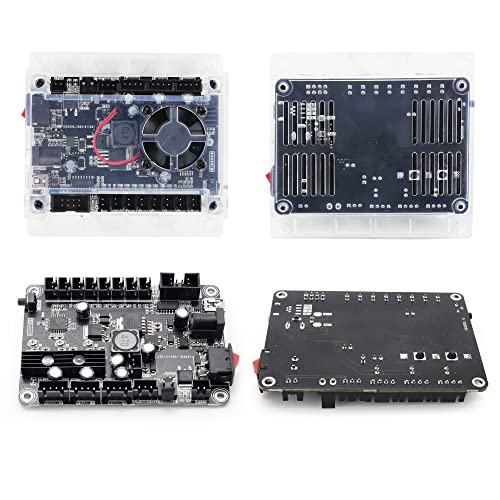

- Advanced 32-Bit Controller - The 3 Axis GRBL V1.1f 32-Bit Controller features a powerful 32-bit controller, providing enhanced processing capabilities for precise and efficient stepper motor control. This advanced controller ensures smooth and accurate movements, resulting in high-quality woodworking, CNC routing, and laser engraving.
- Dual Y-Axis Drive Board - The included Dual Y-axis USB Drive Board allows for independent control of two Y-axis stepper motors. This feature enables synchronized and coordinated movements, reducing the chances of misalignment and ensuring precise and symmetrical engraving or cutting.
- Versatile Compatibility - The controller is compatible with various software applications that support GRBL firmware, such as Grblcontrol (Candle) and La-ser GRBL. This compatibility allows users to choose their preferred software for controlling the machine, providing flexibility and convenience.
- Offline Support - The Stepper Motor Drive Control-Board supports offline operation, eliminating the need for a constant connection to a computer. This feature allows for standalone operation, making it easier to use the machine in different locations or without the need for a dedicated computer setup.
- Wide Range of Applications - This controller is suitable for woodworking engraving machines, CNC routers, and laser engraving machines. Its versatility makes it a valuable tool for hobbyists, DIY enthusiasts, and professionals alike, enabling them to create intricate designs, precise cuts, and detailed engravings on various materials.
13
Wendry WENDRY1PDN5V4ZGQ Diy Cnc Controller Card, Usb 4-Axis Linkage Stepper Motor Motion Control Card, 100Khz Motion Controller Card Board
WENDRYBrand
Wendry1pdn5v4zgqModel
1.18H*7.09L*5.91W inchesDimension
8.3We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $
FreeShipping
Visit Store » Wendryer ( 4.61 / 5 )
Features
14
Cnctopbaos 4V 3 Axis Grbl Control Board Usb Port Cnc Router Controller Board Grbl 1.1F
CNCTOPBAOSBrand
4VModel
8.1We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Very Good
Price: $$
Save 7% + FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features
- Model -Upgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board with Offline controller; Input voltage - 24VDC;Applications - The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.
- New functions - Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch.
- Support software -GRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System - Windows XP/7/8/10
- Support Motor -Support XYZ three-axis control, spindle.Support stepper motor - 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle - Support 24VDC Spindle PWM speed (0%-100%),also support 3-pin PWM/TTL signal control module

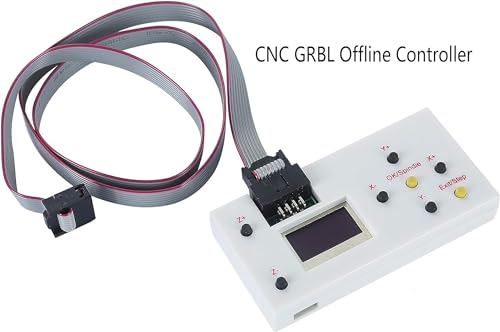

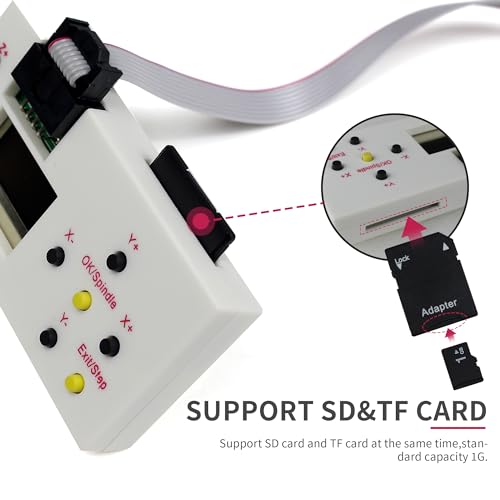

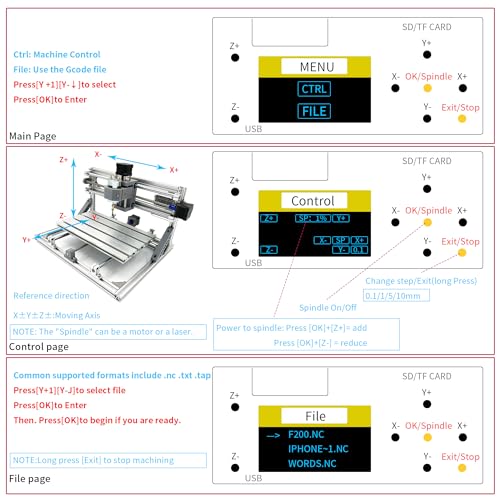

- Offline Controller - It supports SD card and TF card at the same time, standard capacity 1G, (notebooks generally have SD card interface, copy files are very convenient)
15

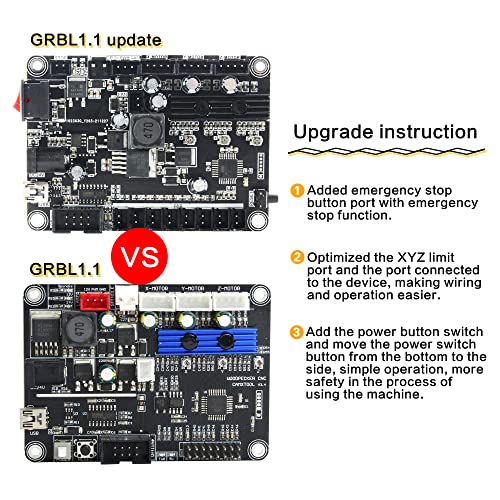

Rattmmotor CNC 1310 Controller Board 4 Axis Grbl Controller Board Usb Port 12-24Vdc Cnc Router Engraving Machine Driver
RATTMMOTORBrand
CNC 1310Model
8.0We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
Save 26% + FreeShipping
Visit Store » Kuku Tech ( 4.79 / 5 )
Features
- Basic Parameters -Connection - USB (USB-CH340), Input voltage - 12-24VDC (recommend 24VDC), Power Interface - 5.5-2.5mm DC interface, Control software - GRBL control/ Lite.fire.
- Support system -Windows XP / Win 7 / Win 8 / Win 10 (32/64 )/ Linux. Support Stepper motor - 12V, maximum current of 2A or less,is recommended within 1.5A and additional heat (any nema17 or nema23 stepper motor). Spindle PWM speed - Support.
- Mutiple Functions - Maximum support for 20000RPM spindle, Support 0.5W-20W module, Support tool setting(probe) , Support GRBL offline controller. Equipped with silent fan, good cooling effect.
- 4 Axis Engraving - Upgraded from X/Y/Z axis to X/Y/Z/A axis, support 4-axis engraving.
- X/Y/Z/A axis Limit Switch Function - Added X/Y/Z axis limit switch, when the engraving machine moves up and down or left and right, it will stop immediately if it exceeds the forming range.
- Power Switch Button Function - Added the power switch button, simple operation, more safety in the process of using the machine.
16

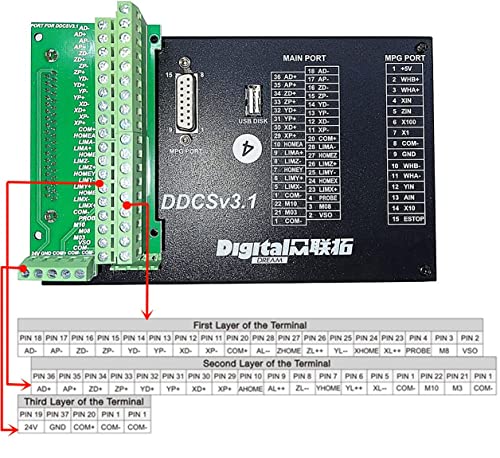

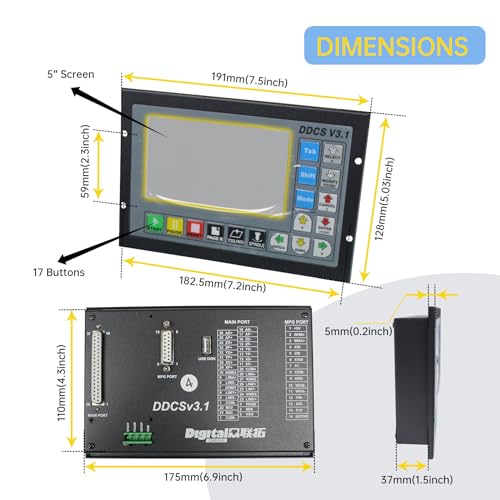

Cnctopbaos DCSV3.1 Servo/Stepper Motor Control Replace Mach3 Plc+100Ppr Mpg Handwheel With E-Stop For Cnc Router Engraving Machine
CNCTOPBAOSBrand
DCSV3.1Model
7.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$$
FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features

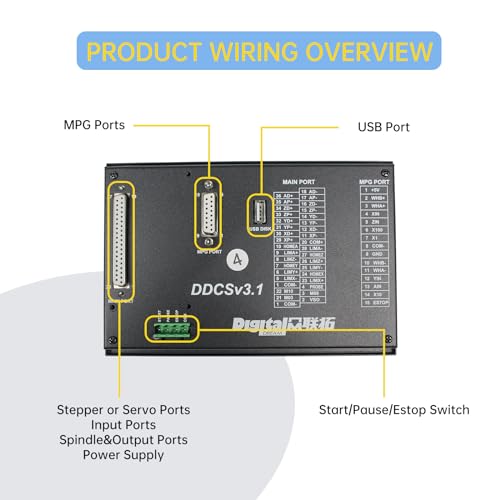

- Brief introduction - The DDCSV3.1 is a 4 axis motion controller,the highest output pulse per axis is 500KHz.This provides high control precision for stepper motors and servo motors.The DDCS operates as a stand alone system without the need of a computer, and it needs two 24V DC power supplies.
- Compatible with G code set -5 inches TFT Screen ; Resolution ratio - 480x272 ; the highest output pulse per axis is 500KHz. This provides high control precision for stepper motors and servo motors. All operations are controlled by only 17 keys and it supports the FANUC with high universality to be compatible with G code set,with 4G USB flash disk support for G code file input,no size limited of the G-code file.
- Brief technical feature - 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs ; Analog spindle control 0-10V spindle control (can be modified as PWM output) ; ARM9 main control chip,FPGA core algorithm chip ; Jog function for each axis (continuous, step, defined distance) ; Customer can define the distance ; Support NPN type limited switch.

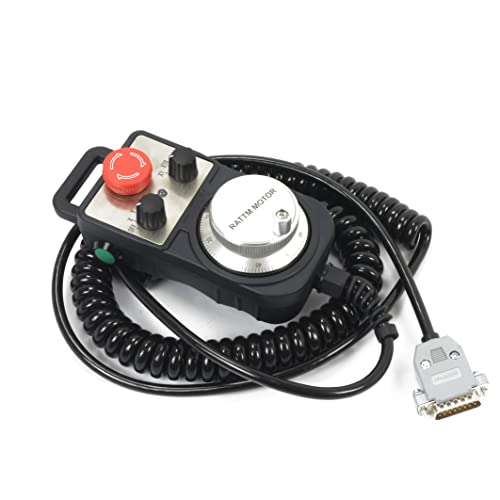

- MPG Handwheel -MPG Resolution - 100 PPR ; Switch - X1,X10,X100,with Emergency stop,LED indicator, with 15-pin plug,so it's play and plug.
- Applications - The DDCV3.1 can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick&Place and Milling Machine,lathe machine and cutters are just a few examples.
17

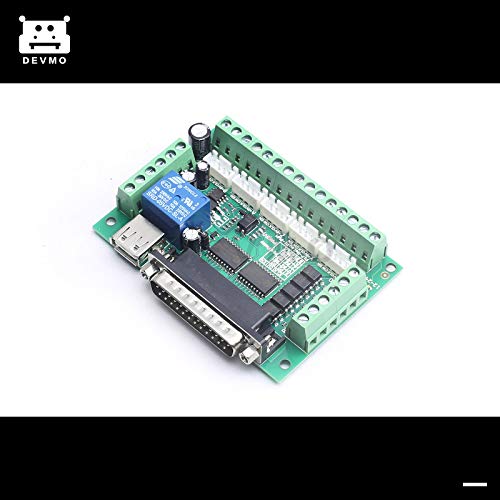

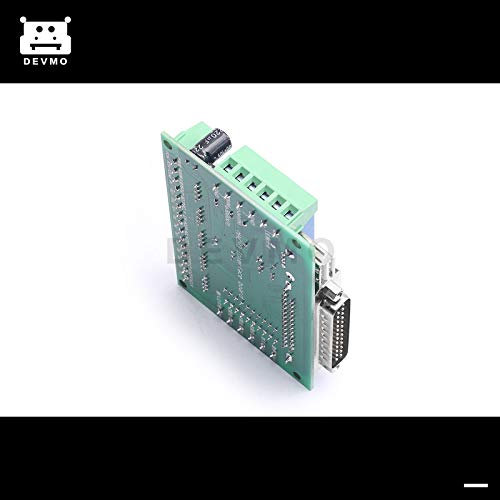

Devmo 5 Axis Cnc Interface Adapter Breakout Board For Stepper Motor Driver Mach3 +Db25
DEVMOBrand
7.8We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
FreeShipping
Visit Store » developmoreus ( 4.46 / 5 )
Features
- High performance, cost-effective.
- Maximum support 5-axis stepper motor driver controllers.
- Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
- USB power supply and peripherals powered phase are separated to protect computer security.
- All the signals are opto-isolated which can protect your computer security.
18
Doesbot 3AXIS Aoldhyy Doesbot Grbl 1.1 A4988 Control Board Cnc Controller Router Cnc Engraving Machine Control Board 3018 3 Axis Usb Control Laser Board Corexy Open Source
DOESBOTBrand
3AXISModel
7.7We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
FreeShipping
Visit Store » DOESBOT Store ( 4.95 / 5 )
Features
19
Cnctopbaos D-FDK-B 4 Axis Usb Mach3 Controller Board,Blue 4-Axis Linkage Mach3 Motion Control Card,Cnc Stepper Motor Driver Controller Breakout Board 4-Inputs
CNCTOPBAOSBrand
D-FDK-BModel
7.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $
FreeShipping
Visit Store » L-STAR MOTOR ( 4.87 / 5 )
Features
- 4 Axis USB Mach3 Control Board - USB interface is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface.As long as Mach3 can run,the control card can be used; Support computer system - Windows XP/7/8/10.
- 4 Axis Linkage - Support for 4 Axis linkage, you can connect four stepper motor drives or servo drives; Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;One status LED, indicate connection status on the board.
- Output Signal Ports - Have 0-10V signal output,you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;Support for connecting electronic handwheel MPG;
- Input Signal Ports - 4 general-purpose inputs, you can connect the limit switch, estop switch, probe , back to zero and other device; Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
- Applications - CNC Router,Milling Machine,Engraving Machine,Carving Machines,Cutting industry,Medical equipment,industrial equipment and automation devices etc.
20
Doesbot 4AXIS Grbl 1.1 A4988 4 Axis Stepper Motor Control Board With Isolation Usb Driver Board For Cnc Laser Engraverd Support 1-10V Vfd And 48V 500W Dc Spindle
DOESBOTBrand
4AXISModel
7.6We rank the products based on several factors, like features, price, customer reviews, and so on.
Rating: Good
Price: $$
FreeShipping
Visit Store » DOESBOT Store ( 4.95 / 5 )
Features
